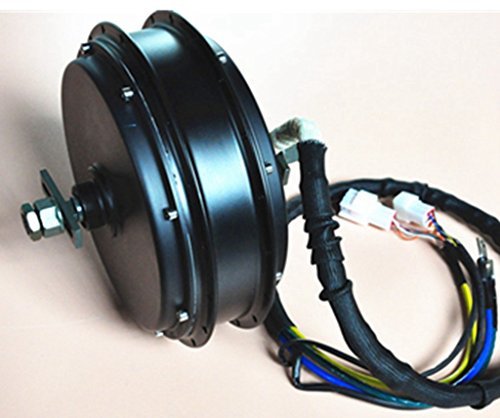

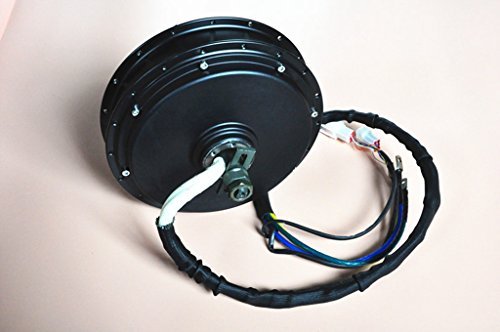

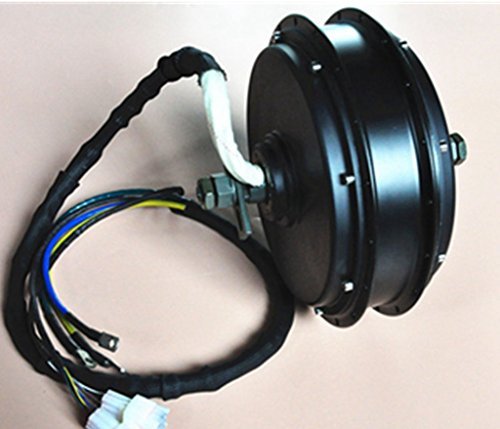

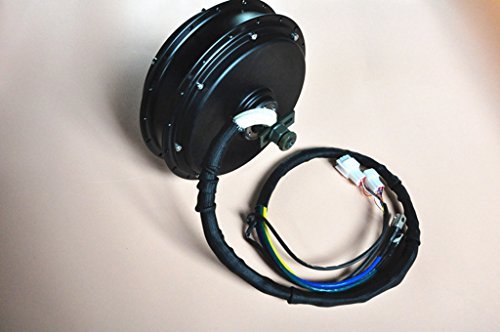

NBPower 5000 watt hub Motor，CE 5kw ebike hub Motor， Electric Bike brushless dc hub Motor 5000w for Electric Bicycle.
$380.09
| Brand | NBPOWER |
| Speed | 700 RPM |
| Voltage | 96 Volts, 48 Volts |
| Horsepower | 5000 Watts |
| Material | Aluminum |
PRODUCT SPECIFICATIONS
Model: NC5000W electric motor
Motor power：5000w
Axle： 10mm* 16mm
motor diameter： 244mm
Voltage： 48v-96v
Magnet Height： 50mm
Stator： aluminum alloy
Windings： 700rpm @72v, 4Tx20
waterproof grade： IP54
KV： 3T motor is 12.5KV , 4T motor is 9KV.
numbers of pole pairs： 23
peak phase current ：300amp
Max torque： 190N.m
Max Efficiency： 89.80%
drop out： 149mm
Numbers of Motor phase： 3 pcs
Hall sensor： 2 sets, one is for spare
hall sensor phasing： 120 degrees
cross section of phase wire： 10mm2
temperature sensor： KTY82/122
color： dark black
N.W：12.75kgs
Package content :
● 1 x Ebike brushless hub motor 5000w ( 60v 72v 84v 96v )
Packaging Details
●Unit Type: piece
●Package Weight: 14.000kg (30.86lb.)
●Package Size: 45cm x 45cm x 25cm (17.72in x 17.72in x 9.84in)
Professional
MANUFACTURER of high quality Electric Bike/Scooter/Motorcycle/Tricycle/ in-wheel motor (CE approved) with competitive price
Ranging 180W -5000W electric motorcycle motor , with differenct voltage
Quality
Good Quality Control. Choose good raw materials from the beginning to the end. All the motor are inspected before delivery.
Service
Well-trained sales and professional engineers provide you with professional solutions & after sale issues.
